Thunderbolt 5 CubeDock™ with SSD Enclosure

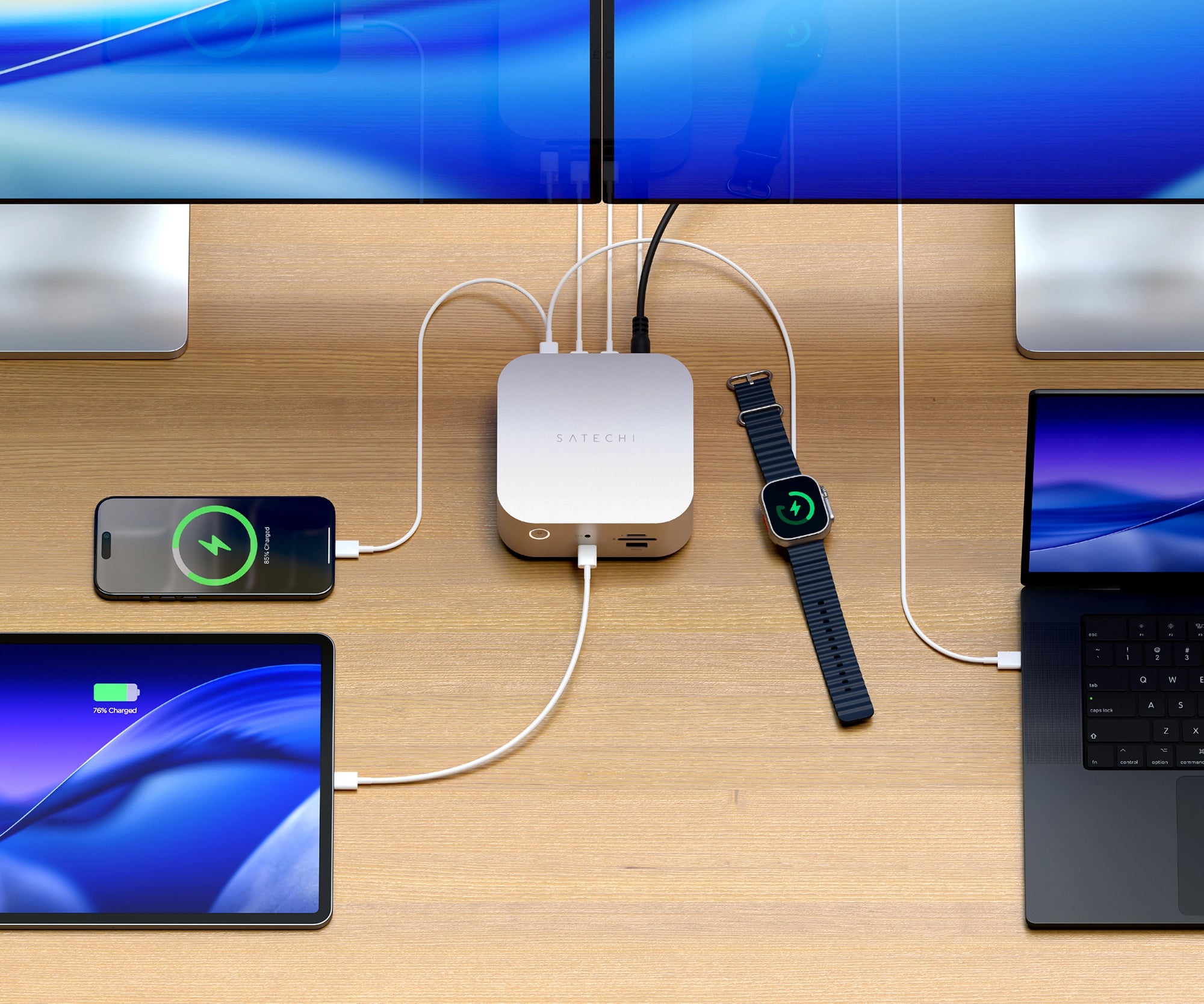

The Satechi Thunderbolt 5 CubeDock™ is designed for professionals who want powerful connectivity without the clutter. Housed in a compact, precision-milled aluminum cube, CubeDock™ powers your laptop, drives multi-displays up to 8K, and expands storage and accessories through a single Thunderbolt 5 connection. With built-in NVMe SSD expansion, 140W laptop charging, and smart active cooling, it delivers workstation-level performance in a refined, desk-friendly form—bringing simplicity, speed, and elegance to every modern workspace.
Thunderbolt 5 Ports
- 1 x Thunderbolt 5 (Upstream): 80/120Gbps, up to 140W host charging
- 3 x Thunderbolt 5 (Downstream)
- 80Gbps Data Bandwidth each
- 15W power output each
- Single Display up to 8K@144Hz (Windows), 6K@60Hz (macOS)
- Dual Display up to 8K@120Hz each (Windows) , 6K@60Hz each (macOS)
- Triple Display up to 8K@60Hz each (Windows)
- Triple Display not supported on macOS
Features

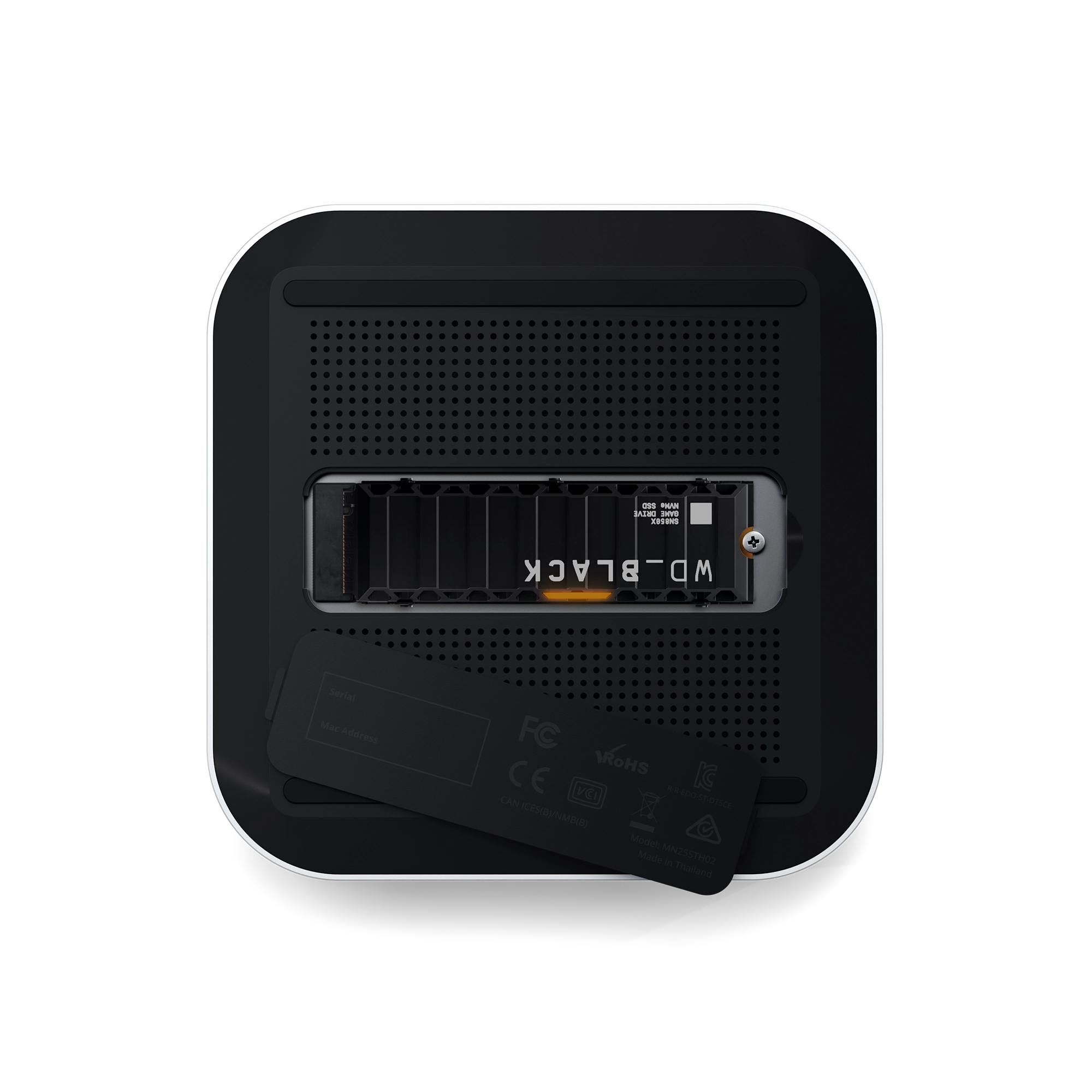

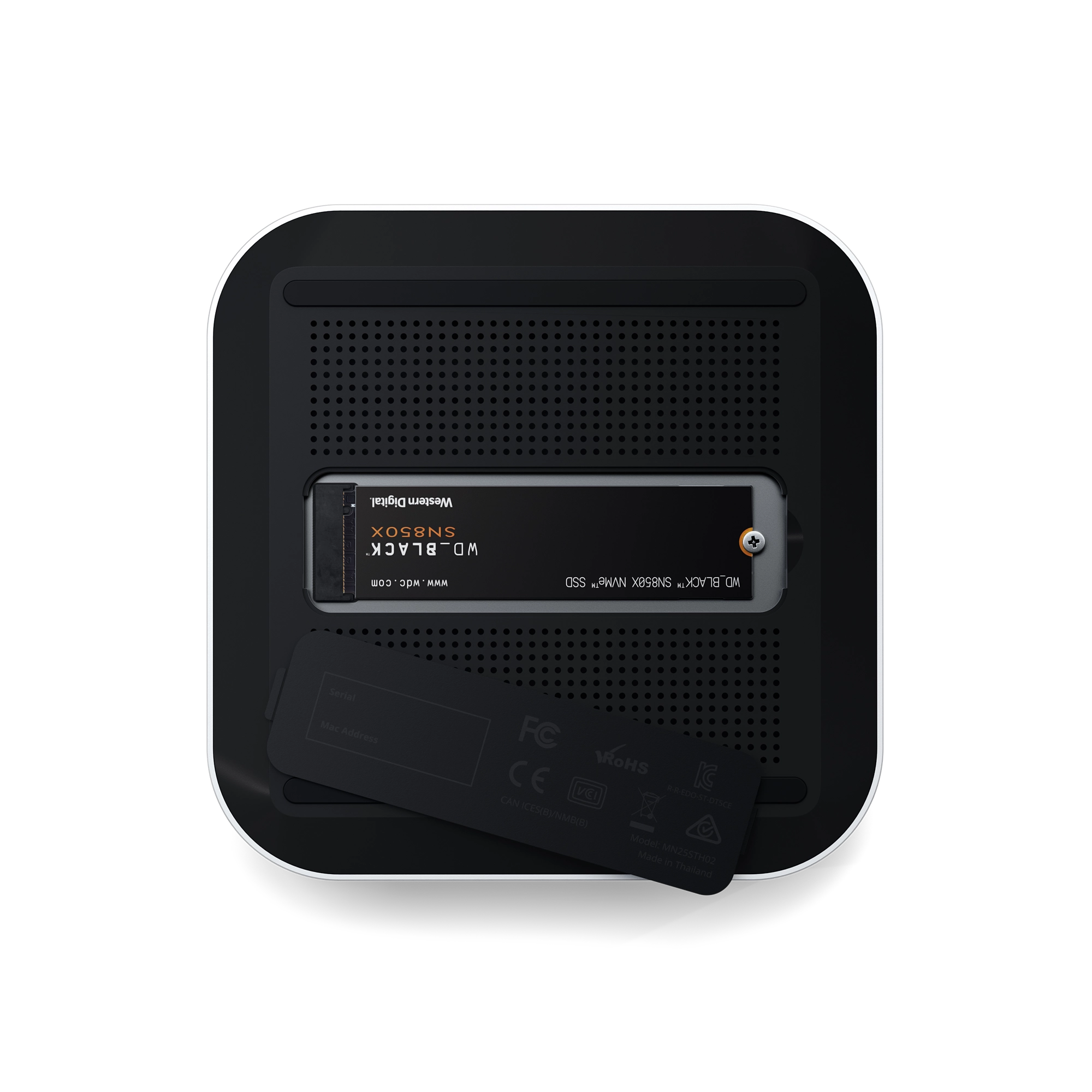

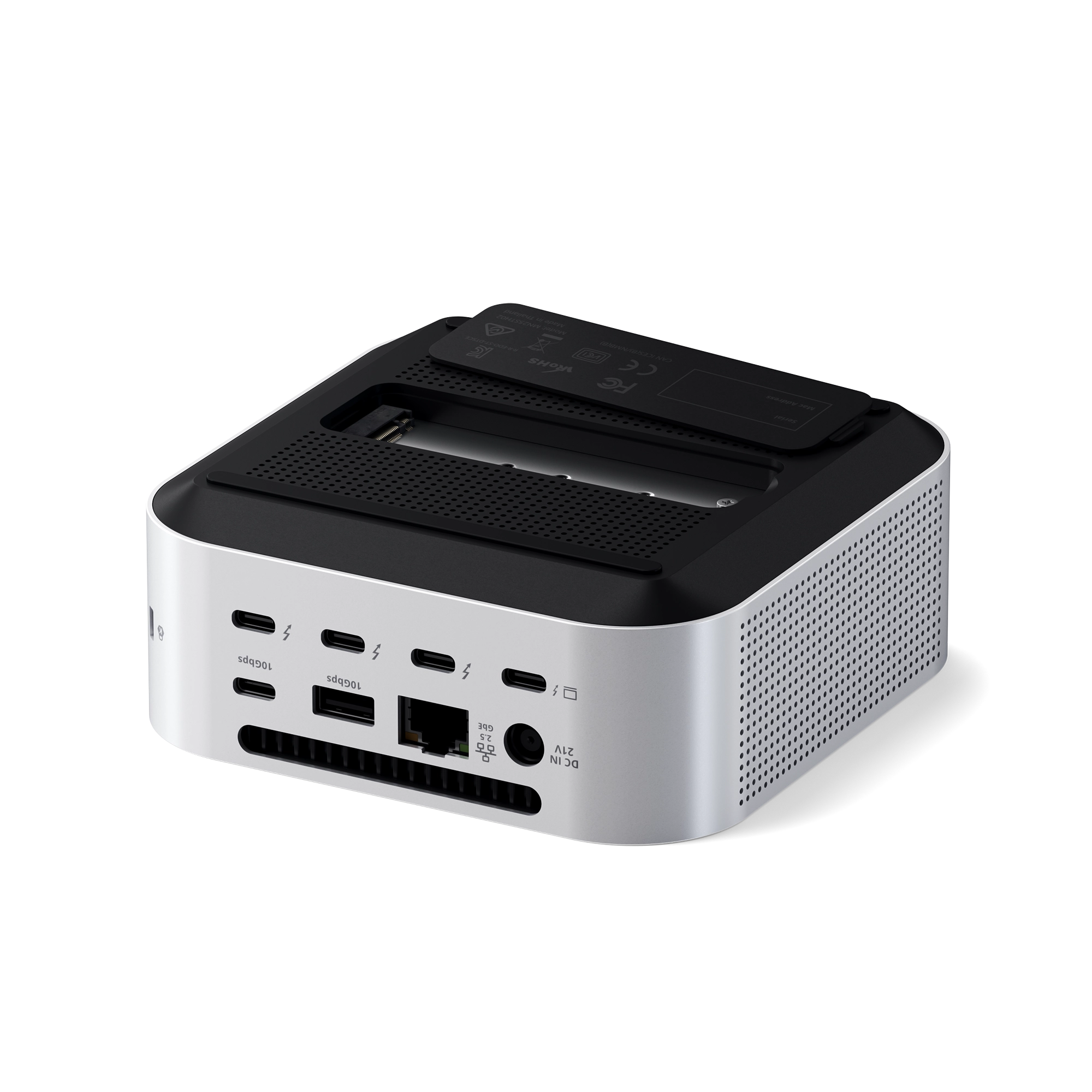

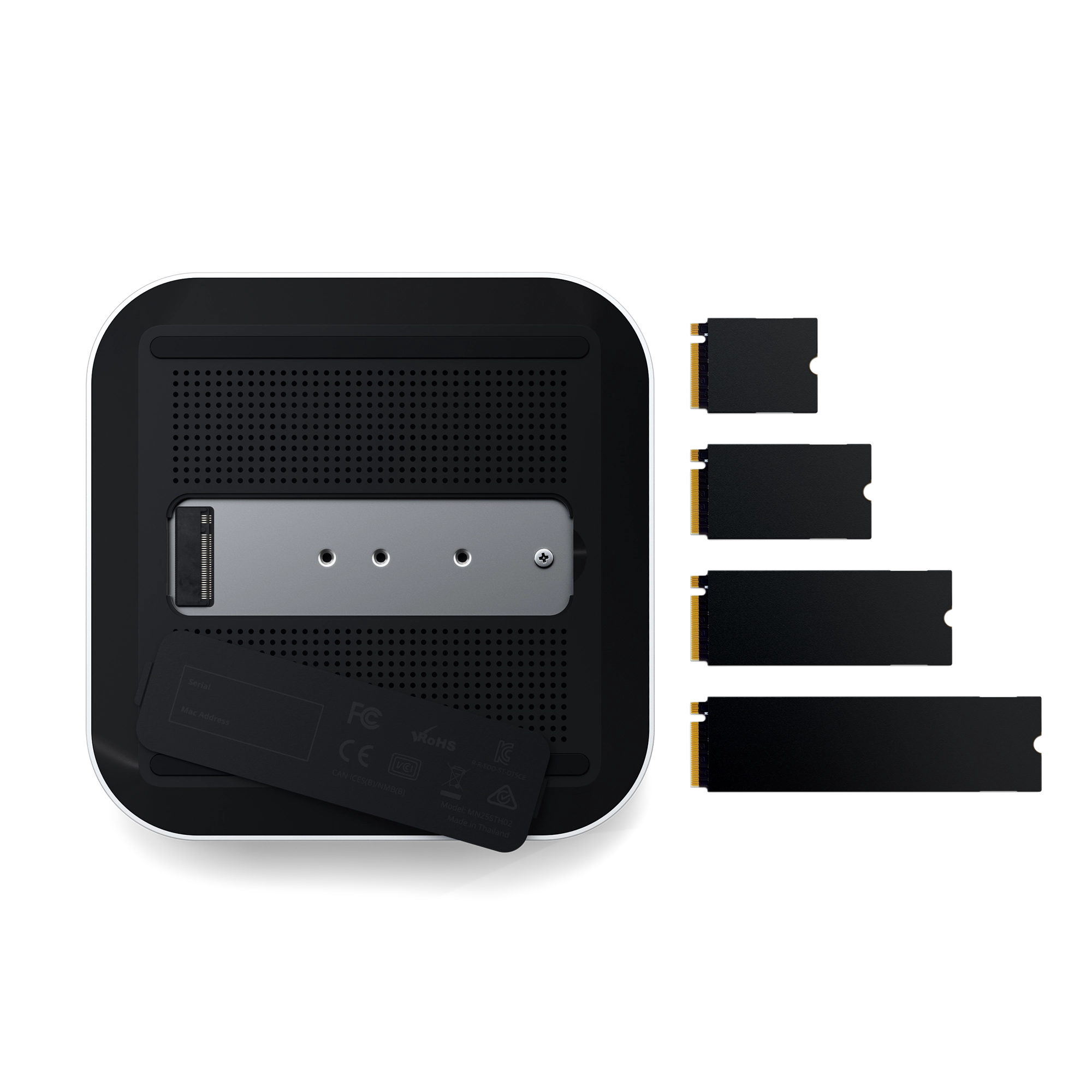

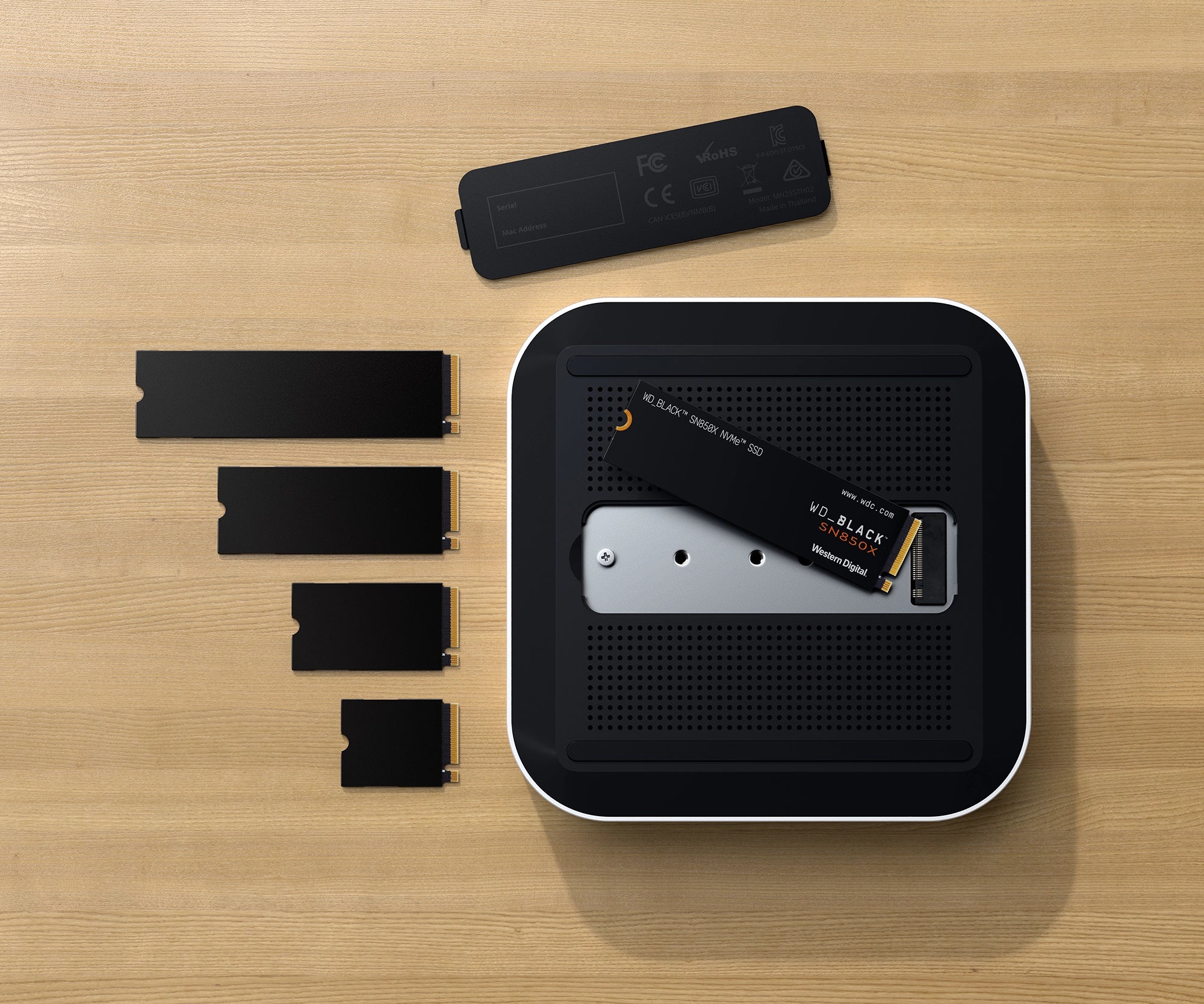

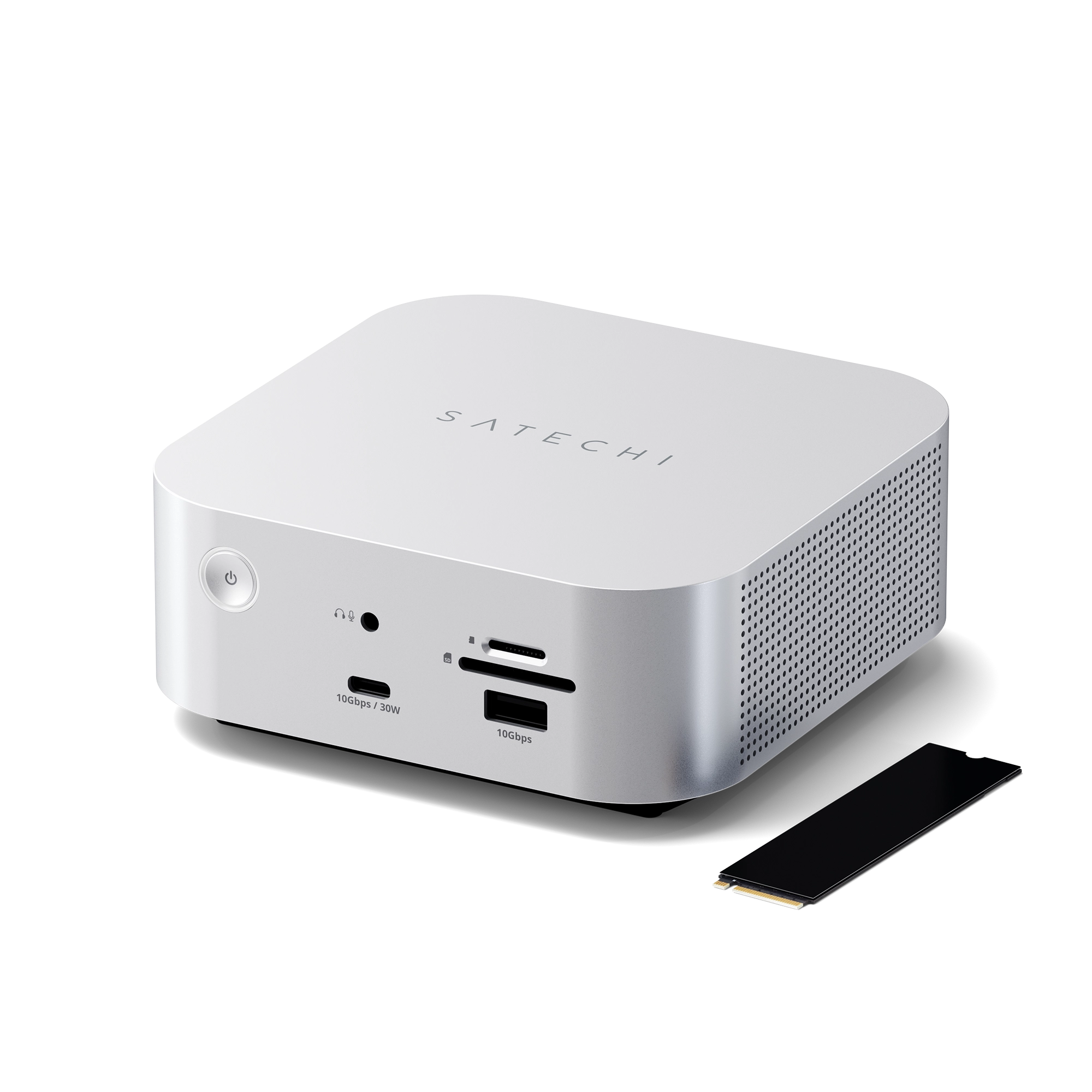

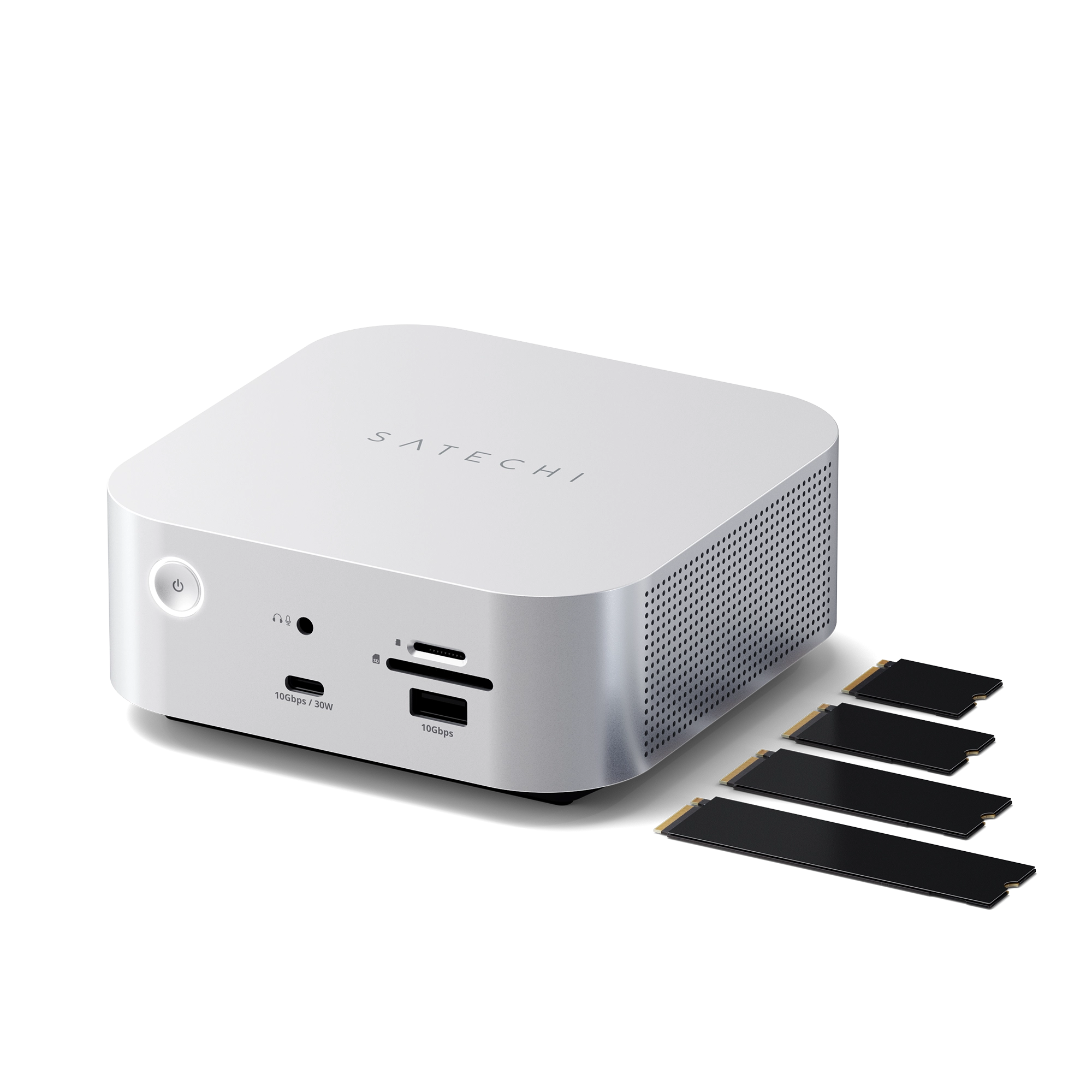

- Integrated M.2 SSD Enclosure supporting various M.2 NVMe SSD sizes and capacities up to 8TB.
- Supports single, dual, and triple display configurations with resolutions up to 8K@144Hz on Windows.
- Features various USB-C and USB-A ports for data transfer and charging.
- Included SD and microSD Card Readers with UHS-II support.
- Includes a 3.5mm Audio Jack for Output/ Input Support.
- Equipped with a 2.5G Ethernet Port for high-speed network connections.
Design

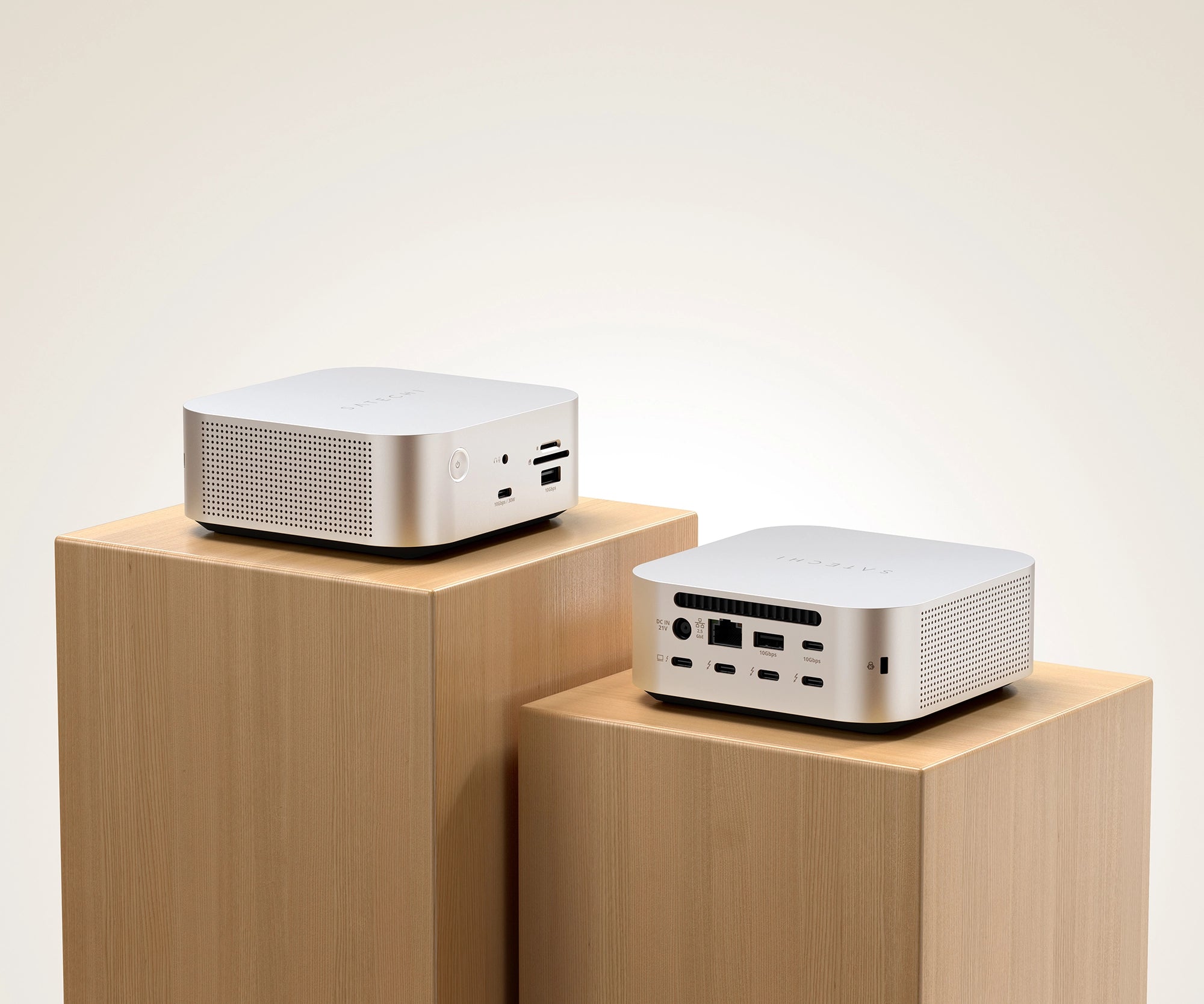

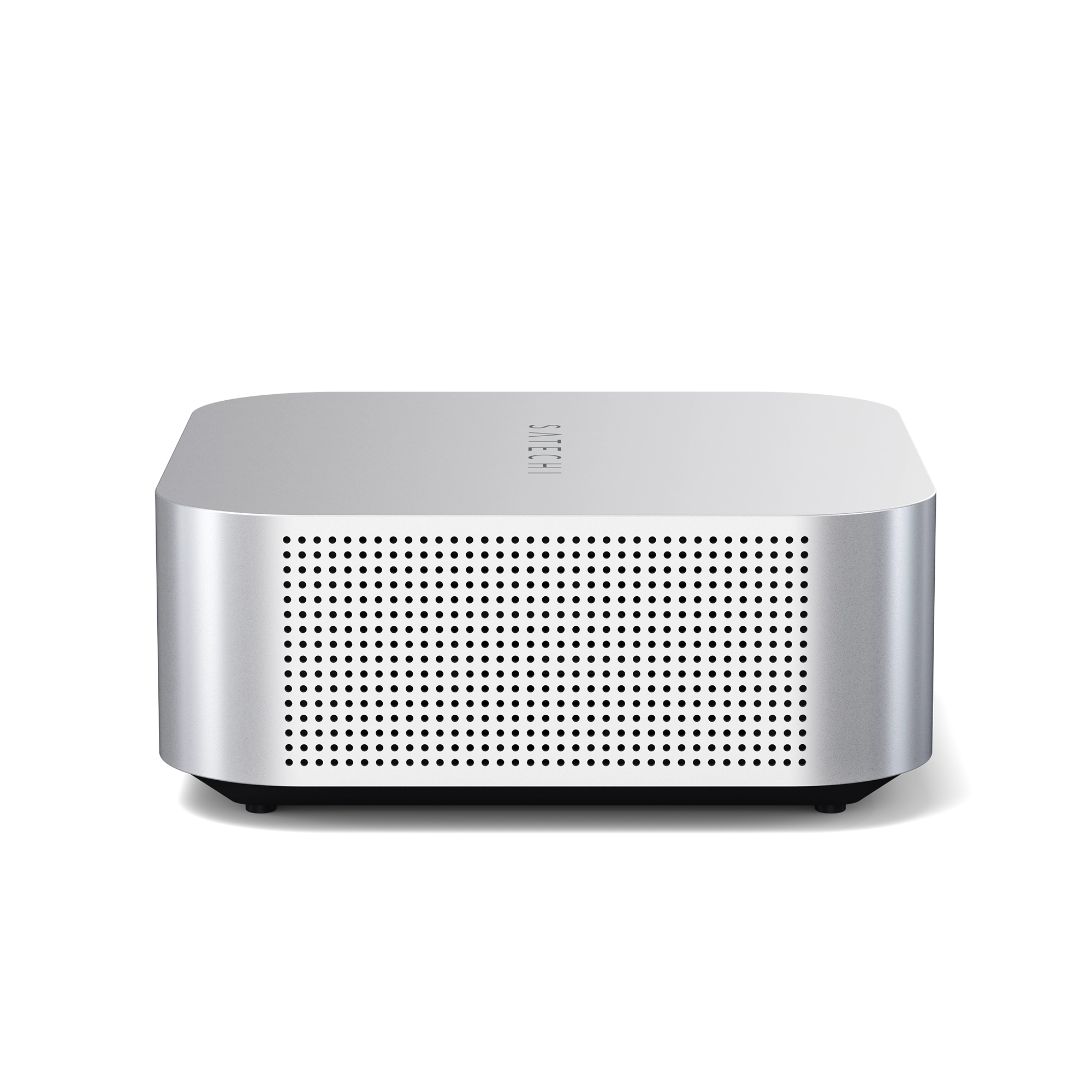

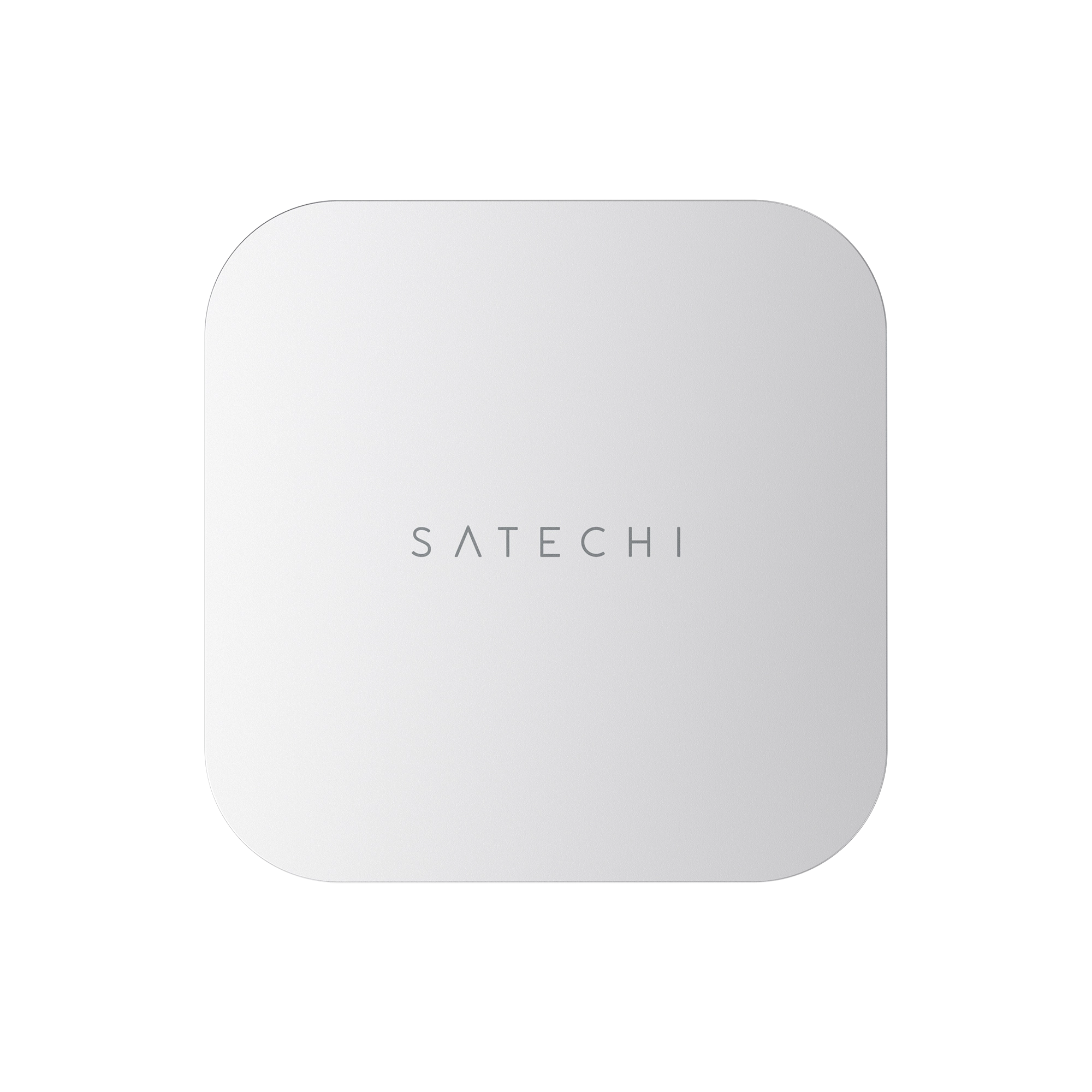

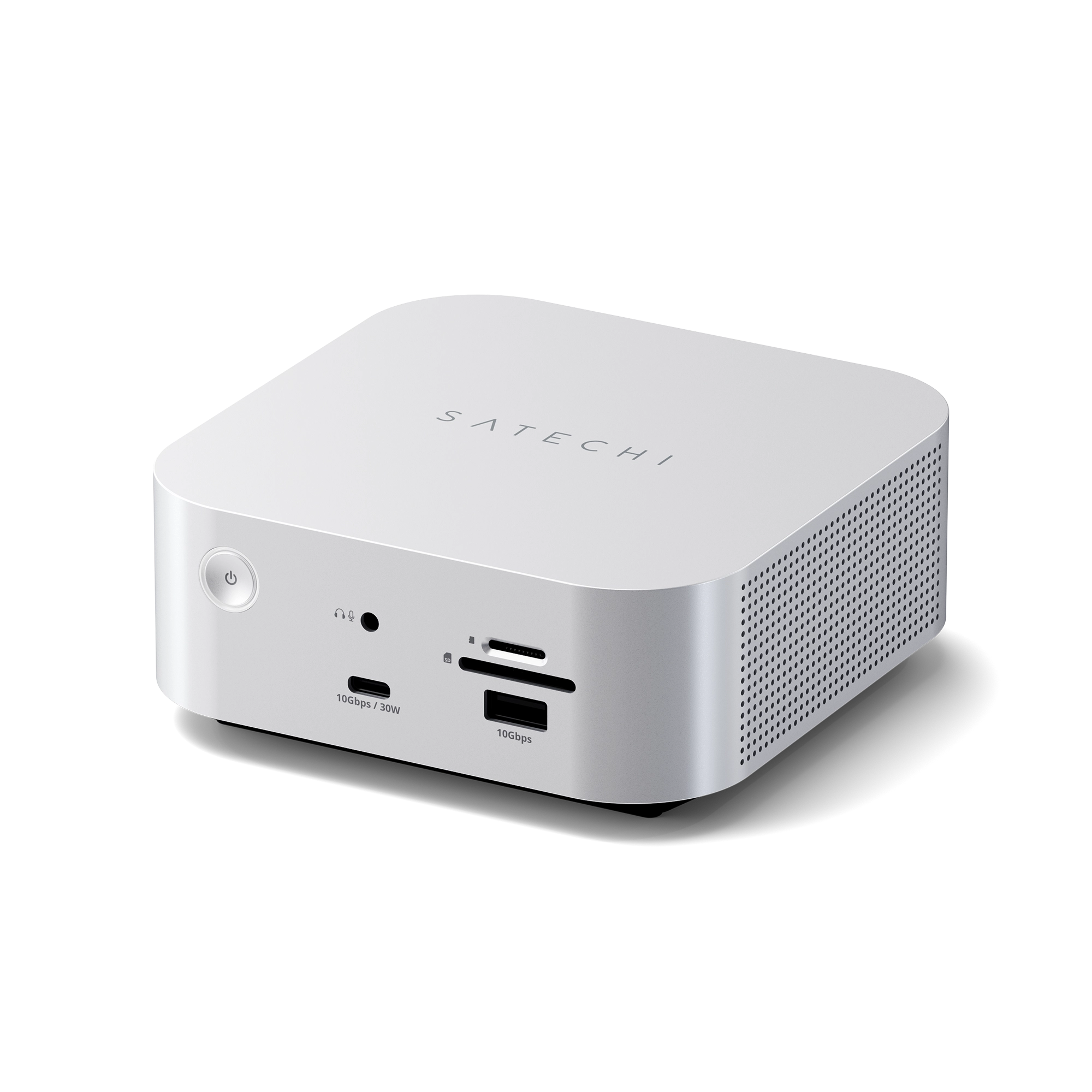

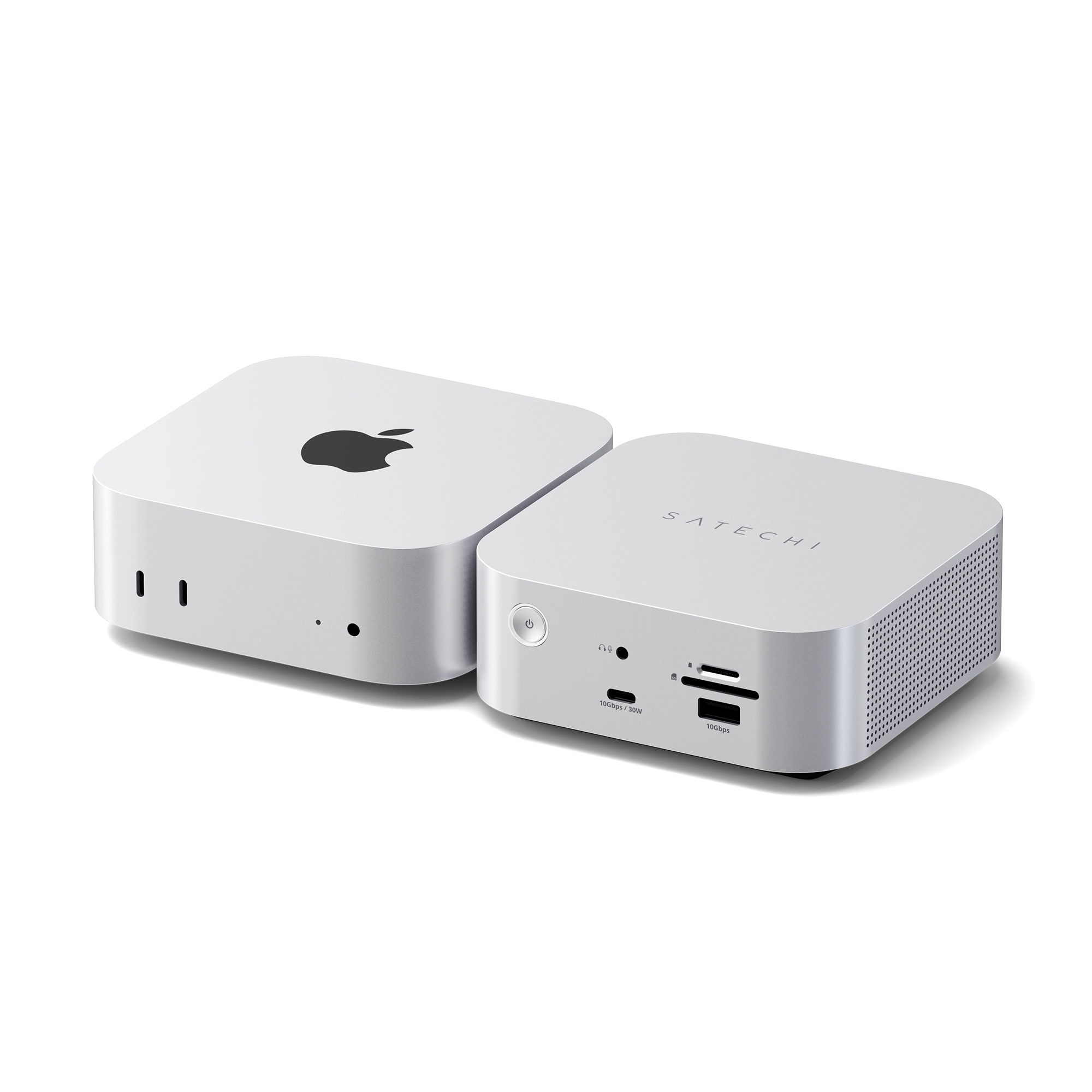

- Compact cube design ideal for desk setups.
Materials
- Constructed from high-quality materials for durability and longevity.
Physical
- Length: 12.7 cm / 5 in.
- Width: 12.7 cm / 5 in.
- Height: 5.2 cm / 2.04 in.
- Weight: 588.9 g.

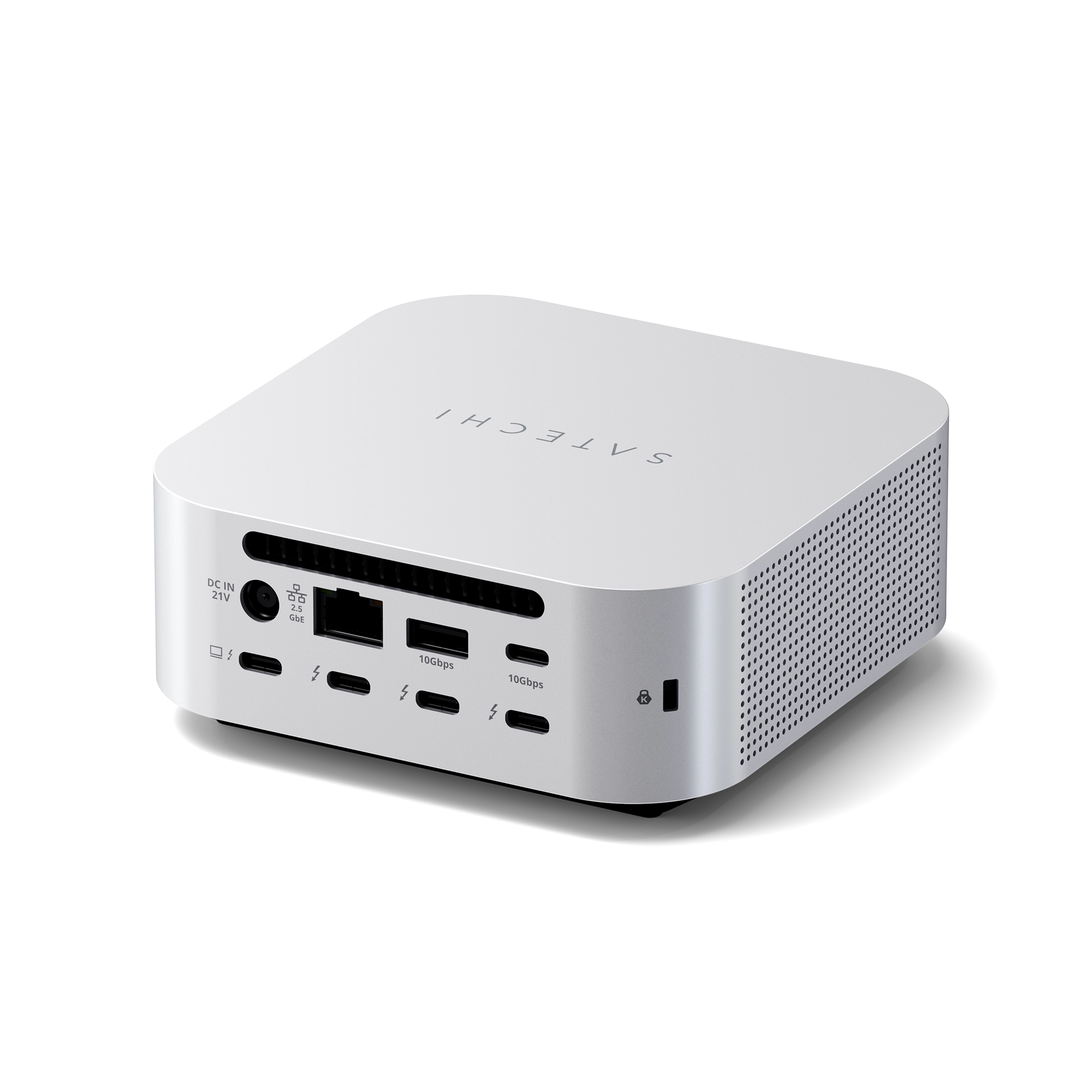

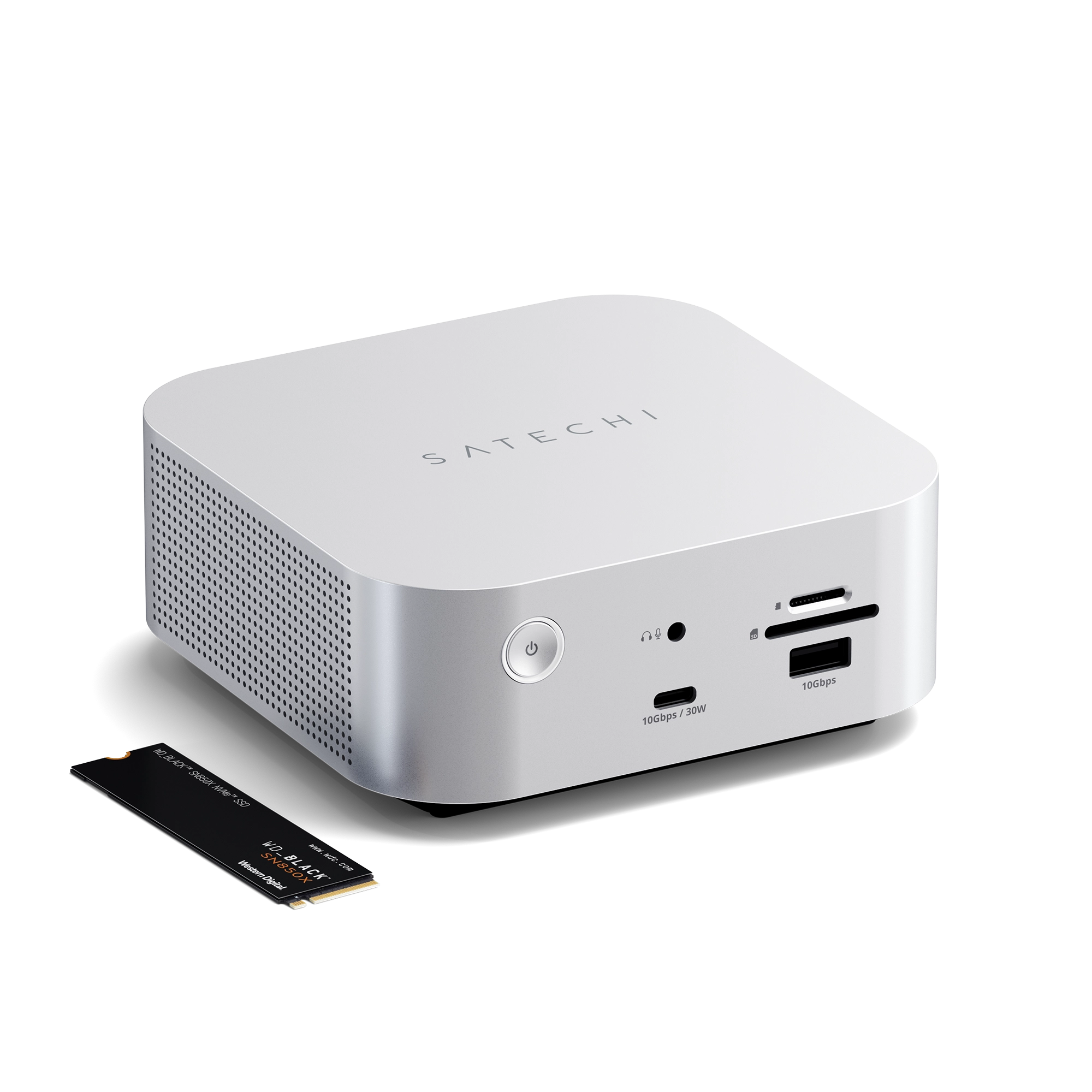

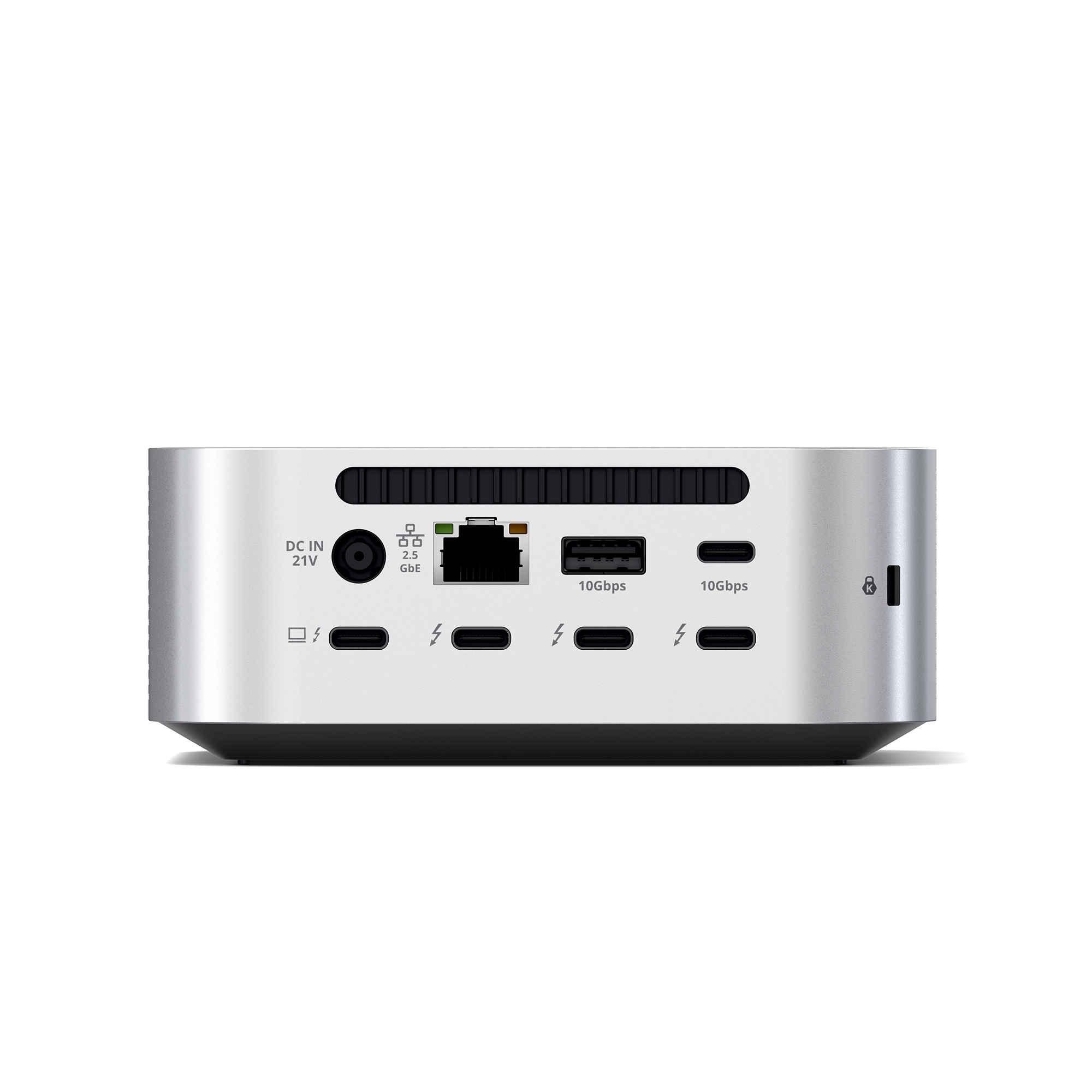

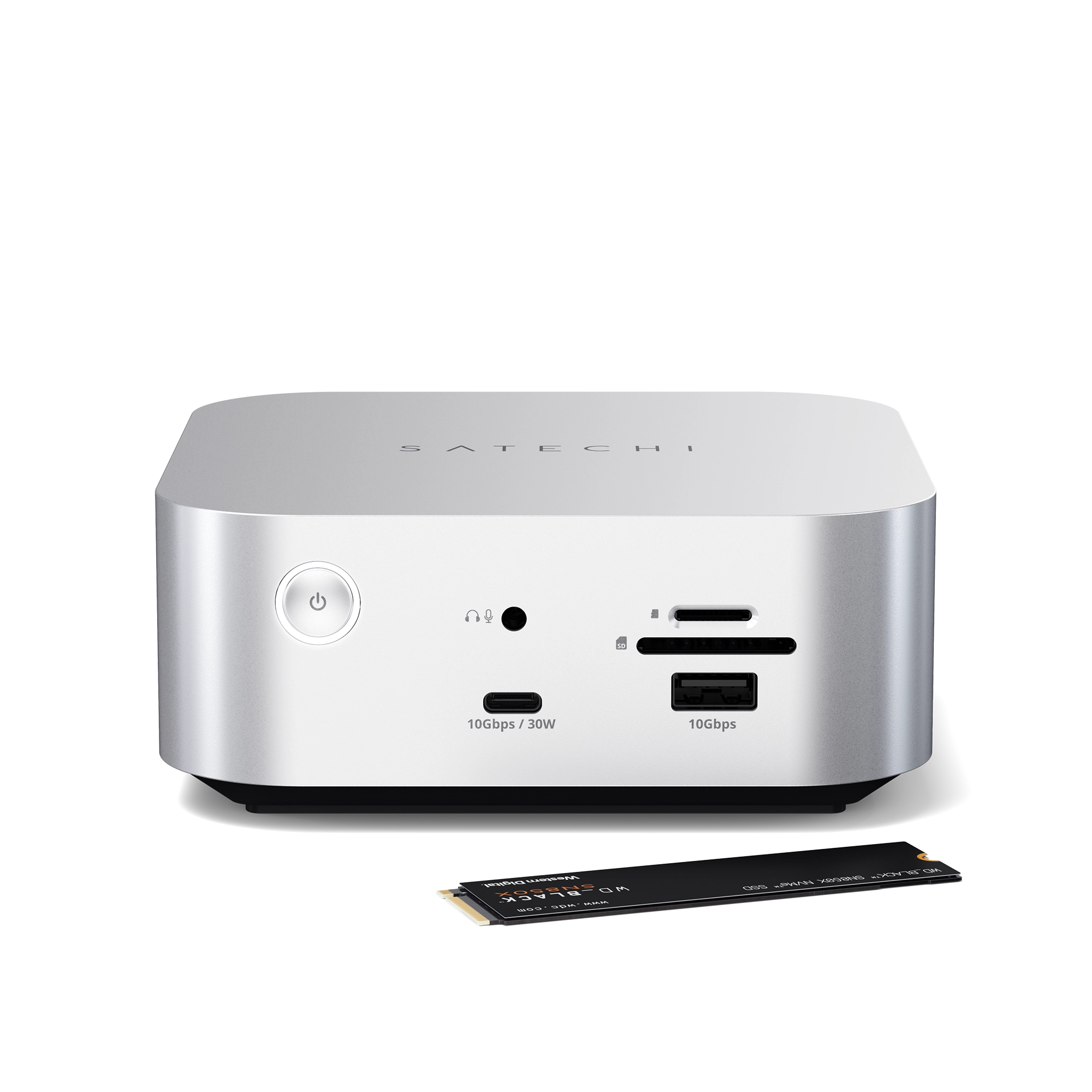

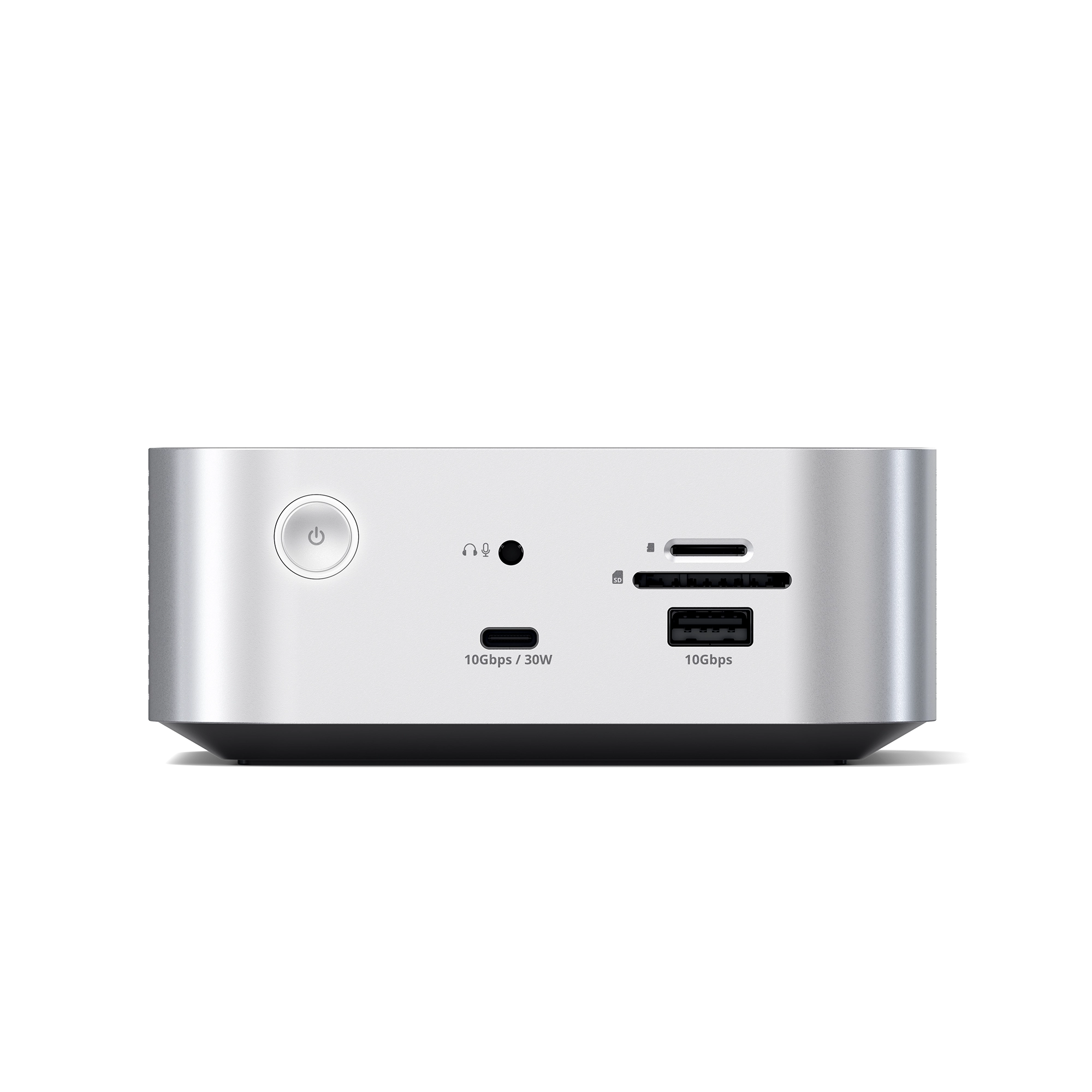

Connectivity
- 1 x Thunderbolt 5 (Upstream): 80/120Gbps, up to 140W host charging.
- 3 x Thunderbolt 5 (Downstream) with 80Gbps Data Bandwidth each and 15W power output each.
- 1 x USB-C Data + Power: Up to 10Gbps, up to 30W charging.
- 1 x USB-C Data: Up to 10Gbps, up to 7.5W charging.
- 1 x USB-A Data 1 (Front) Up to 10Gbps, up to 7.5W charging.
- 1 x USB-A Data 2 (Back): Up to 10Gbps, up to 4.5W charging.
- 1 x SD Card Reader: UHS-II, up to 312MB/s.
- 1 x microSD Card Reader: UHS-II, up to 312MB/s.
- 1 x 3.5mm Audio Jack: Output/ Input Support.
- 1 x 2.5G Ethernet Port.
Power
- 1 x DC Port: 180W Smart Power Supply.
- Thunderbolt 5 ports offer up to 140W host charging.
- USB-C and USB-A ports provide various charging capabilities up to 30W.
What's in the box
- Thunderbolt 5 CubeDock™ with SSD Enclosure.
- Thunderbolt 5 Cable.
- 2x Thermal Pads.
- Screwdriver.
- 2x SSD Screws.
- 180W Smart Power Supply.
- User Manual.
Notes
- Designed for Thunderbolt 5 devices.
- Downwards compatible with Thunderbolt 4, USB4, Thunderbolt 3, USB-C devices (Speeds may vary).
- SSD not included.
